Vacuum Traps/Cold Traps
These are used to condense vapors and prevent them from being evacuated from an experiment. Our vacuum traps are made of borosilicate glass.
We offer vacuum traps with different capacities and in different designs. These include the one-piece vacuum traps, the two-piece vacuum traps, dual-vacuum trap assemblies, and so forth.
Two-piece Vacuum Traps: The two-piece vacuum traps are made up of the trap body and the stopper. The two-pieces are connected with inner and outer joints that facilitate easy cleaning. The top inlet tube is available either as a straight tube or it can be bent at 900 but in an opposite direction to the side tube.
Dual-Vacuum Trap Assemblies: These are designed to be used with manifolds. They are made up of a pre-trap and a main trap. The pre-trap has polished socket joints to connect the line shut off adapter to the main trap stopper assembly which has o-ring ball joints. Both the traps can be isolated from the manifold via valves.

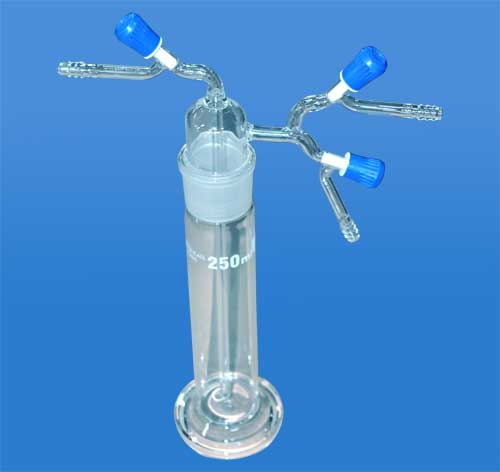

Complex Vacuum Traps: These vacuum traps come with Rota-flow stopcocks. Customization can be done as per one’s requirement.
