Adapters
Our adapters are widely used in laboratories to connect glassware items, in a simple and secure manner.
We offer adapters in different shapes and sizes.
Our range of adapters include the reduction and expansion adapters, multiple neck adapters, swan neck adapters, receiver adapters, tubing adapters and many more.
Customization is possible as per one’s requirement.
Reduction Adapters: These are used to connect two items of glassware with different joint sizes. These adapters have a small sized socket at the top and a large sized cone at the bottom.

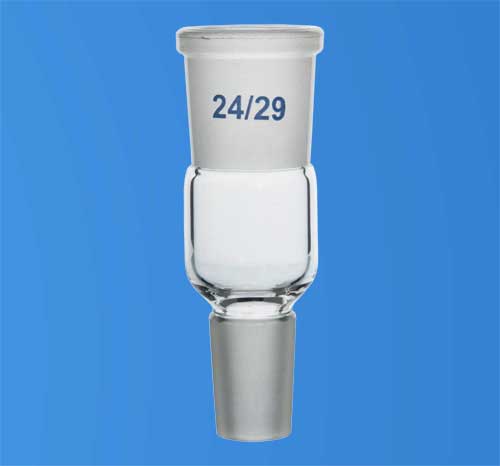

Expansion Adapters: These are used to connect two items of glassware with different joint sizes. These adapters have a large sized socket at the top and a small sized cone at the base.

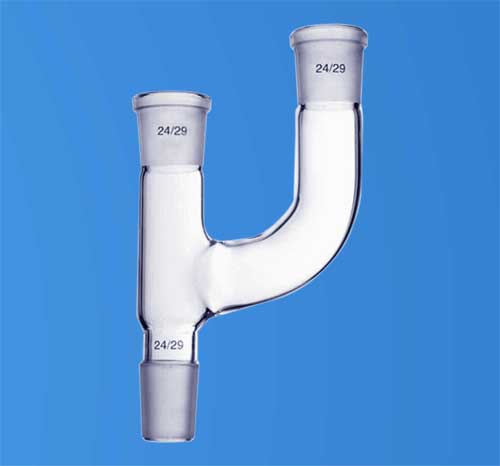

Multiple adapters with two parallel necks: These adapters come with two parallel sockets and a cone at the base.

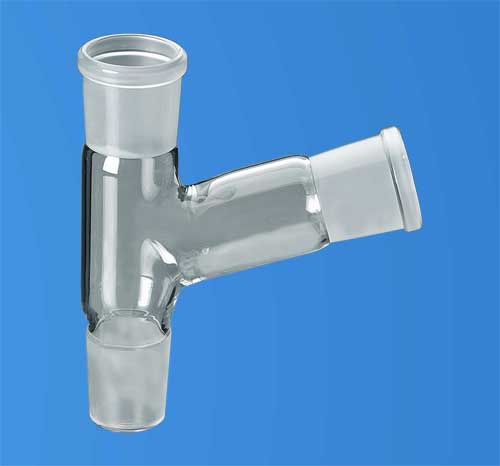

Multiple adapters with two necks, one vertical and one at 450: These two neck adapters have one vertical socket and one angled socket with a vertical bottom cone.
Multiple adapters with three necks, two parallel and one at 450: These three neck adapters have two parallel sockets and one angled socket with a vertical bottom cone.
Swan Neck Adapter: These adapters feature two different types of joints; the ground glass socket and the screw thread joints. The screw thread joint allows for the use of thermometers and air leak tubes.
Receiver Adapters, with Short and Long Stems: These adapters are used to safely feed the distillate from condensers into the receiving vessels. They are available with short and long stems.
Receiver Adapters, Straight: These adapters have a straight stem and deliver the distillate from vertical condensers into the receiving vessels. Receiver Adapters, Straight with Vacuum Connection and Screw Thread Connector: These adapters have a side-arm with a plastic screw-thread connector that provides connection to a vacuum supply. The straight design allows feed the distillate from vertical condensers into the receiving vessels.
Receiver Adapters, Bent with Vacuum Connection and Screw Thread Connector: These adapters have a side-arm with a plastic screw-thread connector that provides connection to a vacuum supply.
Receiver Adapters, Bent with a Vent: These receiver adapters are bent and have a side arm through which gases produced in the distillation process can be released.
Receiver Adapters with one side inclined at 1050: These adapters feature a side socket inclined at 1050. Receiver Adapters with Multiple Connectivity: These adapters have a cow-type design and allow up to three flasks to be connected to a condenser outlet. By slightly rotating the adapter, the distillate can be collected in a new flask every time. The side arm allows for connection to a vacuum supply.
Receiver Adapters, Plain Bend: These adapters are available with different size sockets and cones to connect with other jointed glassware items.
Adapters, Recovery Bend with Sloping End: These simple glass bends with two cones provide for a simple vapor conduit between flasks and distillation condensers.
Adapters, Recovery, Vertical Mode: These adapters are used in distillation assemblies when the condenser is placed in a vertical position.
Adapters, Still Head Plain with Thermometer Socket: These are used in distillation assemblies for connecting flasks to condenser. The upper socket is designed to accept a thermometer.
Adapters, Claisen Head: These adapters come with an extra vertical socket to include a dropping funnel in the distillation assembly.
Adapters, Splash Head, Straight: These adapters are pear shaped. They help prevent the carryover of raw liquids between the flask and the condenser.
Adapters, Splash Head, Vertical Distillation: These splash head adapters are for use in distillation assemblies in which the condenser is assembled in the vertical mode.
Adapters, Splash Head, Sloping: These splash heads prevent the raw liquid from 'carrying over' to the condenser, in distillation assemblies.
Adapters, Socket with Glass/PTFE Key/PTFE Needle-Valve Stopcock: These adapters feature a ground glass socket joint and a stopcock that ensures a flow control. We offer glass, PTFE key and PTFE needle-valve stopcocks.
Adapters, Cone with Glass/PTFE Key/PTFE Needle-Valve Stopcock: These adapters feature a ground glass cone joint and a stopcock that ensures a flow control. We offer glass, PTFE key and PTFE needle-valve stopcocks.
Adapters, Cone to Rubber Tubing, Right Angled Connection: These adapters come with a right angle connection for the attachment of flexible laboratory tubing to a jointed glass assembly. They feature a ground glass cone joint and a detachable plastic screw thread connector. A variation with a stem in these adapters is also available.
Adapters, Socket to Rubber Tubing, Straight Connection: These adapters come with a straight connection for the attachment of flexible tubing. They feature a ground glass socket joint and a detachable plastic screw thread connector.
Tubing Adapters with Side Arm: These adapters have a ground socket and cone with a side-arm fitted with a detachable plastic screw thread connector for the connection of flexible tubing.
Adapters, Cone, Screw Thread: These adapters feature a ground glass conical cone joint at one end a screw thread joint at the other end.
Thermometer Pockets: These adapters are for incorporating thermometers into jointed glassware assemblies.
Plain Air/Steam Inlet Tubes: These are used in conjunction with cone or screw thread adapters as air/steam inlet tubes.
Drying Tubes: These tubes are filled with a disposable solid desiccant and are used to keep the reaction vessels free of moisture. They feature an open end and the other end has a ground glass joint for connecting to the reaction vessel. We offer straight drying tubes as well as drying tubes bent at an angle
